How to Label Fiber Optic Cables: A Complete Professional Guide

Why Professional Cable Labeling Matters

What's the difference between properly-labeled infrastructure and one that is not properly labeled can be seen in the final numbers. According to research conducted by industry experts that shows network failures cost businesses the equivalent of five thousand dollars per minute. If technicians aren't able to quickly recognize the correct cable, these minutes can add up quickly.



Beyond the immediate benefits for operation In addition to the immediate operational benefits, proper identification of fiber cables assures compliance with TIA-606B telecommunications infrastructure standards. Numerous industries require documentation of cables management systems to be audited Inadequate labeling may result in failed inspections, or safety violations.

Essential Information Every Label Must Include

Before printing labels for a single item, determine the information that each label requires. The most efficient labeling system for fiber optic cables comprise these key components:

• The cable identifier: An alphanumeric code that differentiates this cable from other cables within your facility. Make sure you use a consistent format, such as "FB-03-A142" where FB indicates fiber, 03 is either the zone or floor while A142 represents the exact cable number.
• Source and destinations: The ends of the cable must clearly identify the location where the cable begins and ends. For instance, "Server Rack 12A to IDF-3" is clear and unambiguous.
• The specifications for cable: include whether it's a single-mode and multimode cable, its amount of fiber (12-strand 24-strand, 12-strand, etc. ) and any additional particularities such as OM3 or OM4 designations in multimode cables.
• Date of installation: This can help keep track of the age of cable and plans maintenance schedules. A simple "Inst: 03/2024" format works well.

The following are the ways that different environments will prioritize this data:

Environment Type	Primary Label Focus	Secondary Information
Data Centers	Rack/port locations, circuit IDs	Cable type, installation date
Campus Networks	Building-to-building paths, floor numbers	Assignments to VLANs, Departments
Telecom Facilities	Circuit numbers, customer IDs	Fiber count, splice sites
Industrial Settings	Equipment connections, safety zones	Maintenance schedules, voltage ratings

Choosing the Right Labeling Materials

The materials you choose will determine the length of time your labels will remain usable. I've seen labels that were handwritten disappear after a few months, while thermal-printed labels last for years.

Thermal labels provide the most effective combination of quality and professionalism. They are resistant to temperature changes they don't fade with handling, and will remain visible for more than 10 years. Brother and Brady are durable industrial label printers that work with software for managing cables.

Heat-shrink tubing labels are ideal for outdoor installation or in difficult conditions.¹ When they are applied using the help of a heat gun, they adhere permanently to the jacket of the cable and are resistant to UV exposure and scratching. They are more difficult to update and should be reserved to be used for permanent installations.

Wrap-around flags offer flexibility for situations that see cable paths changing often.² They are installed without disconnecting anything and are able to be moved easily. But they can become loose over time if they are they are not secured correctly.

For the majority of installations that are professional I suggest thermal transfer labelling for indoor run as well as heat-shrink for industrial or outdoor applications.

The Step-by-Step Labeling Process

1. Record before labelling. Make a spreadsheet or utilize the cable management program to give each one a unique identification. This prevents duplicate IDs and helps ensure uniformity across all your network infrastructure.
2. Cleanse the cable's surface. Clean the jacket using isopropyl alcohol to remove any marks that might remain. Oil, dust from hands, or residues of cable pulling lubricant can result in labels peeling early.
3. Place labels with consistency. Labels should be placed 3-6 inches away from each endpoint and the text is oriented to read naturally facing the rack of equipment. For cable runs that are longer than 50 feet, label them at midpoints, as well as any access panels.
4. Confirm and take a photo. Before closing cables or trays for cable installation make sure that the labels are in line with the documentation. Photograph the completed installation. They are invaluable for any future expansions or problems.

Color Coding and Visual Organization

The use of color strategically increases the speed of identification of cables. While labeling text offers specific details, color-coding makes it easy to identify cable uses or zones.

In accordance with TIA-598-D standards fiber optic cables are based on the standard colors for jackets in single-mode: yellow, aqua/orange for multimode.³ Create your own standards using colored labels or bands:

Color Code	Common Usage	Application Example
Blue	Horizontal backbone connections	Floor-to-floor lines in buildings
Green	Inter-building campus links	Building A-B connections
Red	Critical/primary circuits	Main internet uplinks, central switches
Yellow	Secondary or backup paths	Redundant connections, failover circuits
White/Clear	General infrastructure	Standard workstation drops, access points
Purple	Equipment connections	Server-to-switch, SAN connections

This system of visuals lets technicians determine the priority of circuits quickly without having to read every label.

Common Mistakes That Undermine Your System

The labeling programs that fail to meet the requirements share regular patterns. Incoherent naming schemes are top of the list. When different technicians employ different formats and systems break down. Set clear standards and educate all those who are likely to change or add cables.

Inadequate label durability creates false economy. A $50 savings on cheap labels will mean that you have to replace the entire set within a period of two years, causing disruption to operations and wasting more cost of labor.

Documentation updates that aren't updated may be the most ominous issue. Physical labels serve little purpose if your network documentation doesn't match. If you are adding, removing or change the configuration of cables and labels, you must make sure that you update both labels and the master documentation at the same time.

Advanced Techniques for Large-Scale Deployments

Data centers of the future are increasingly using QR codes along with traditional text. They connect directly to more extensive records in the database for your cable management. The technician who scans the code immediately accesses the dates of installation, test results along with maintenance history as well as photos of both ends.

In enterprise environments that manage hundreds of connected devices, DCIM (Data Center Infrastructure Management) software such as Nlyte or Sunbird integrates label printing and asset tracking. The database changes automatically produce the latest labels, while maintaining an exact the synchronization.

RFID tags are the latest in the identification of fiber cables, even though the cost is still more expensive than traditional labels. RFID tags allow for automated inventory of assets.⁴ Simply stroll through your data center equipped with an RFID reader and verify every cable's location and presence in your data base.

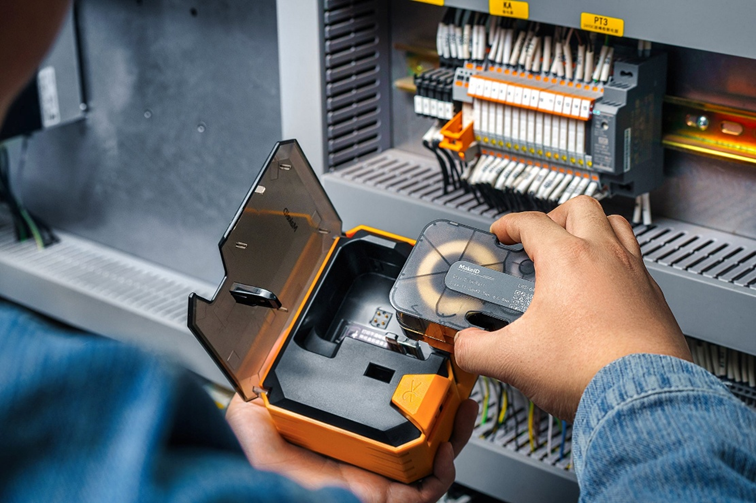

Recommended MakeID P31S Fiber Optic Cables Label Printer

Key Features of the MakeID P31S Fiber Optic Cable Label Printer:

·         High-Resolution Printing: 300 dpi thermal transfer technology ensures sharp, smudge-resistant labels that remain clear over time.

·         Rugged and Dustproof Design: Designed to withstand harsh environments, it's ideal for outdoor electrical work.

·         Powerful Battery Performance: Built-in 2000 mAh lithium battery prints up to 3000 labels per charge.

·         Multi-Type Label Support: Compatible with heat shrink tubing labels, suitable for various wiring applications.

·         Smart Mobile App Control: Bluetooth-enabled design allows users to print and edit labels easily through a smartphone app.

For electricians, network engineers, and field installers, the MakeID P31S offers an efficient, portable, and all-in-one Labeling solution. Its combination of industrial durability, mobile flexibility, and high print precision makes it the ultimate choice for organizing and maintaining fiber optic cable systems with ease and professionalism.



Maintenance: Keeping Your System Current

Even the most effective labeling system can degrade without maintenance. Conduct quarterly audits that physically check 10-15% of your system. Look for faded labels loose wrap-around tags, or any discrepancies between documentation and physical labels.

Replace labels promptly when you see signs of deterioration instead of simply waiting to go difficult to read. A few minutes spent on replacing a label today will spare the need for hours of troubleshooting.

If you are decommissioning cables, be sure to remove or clearly label old labels to prevent confusion. Nothing is more frustrating then "ghost" labels from circuits that are no longer in use.
