I still remember one night shift when a core switch went down at 2 a.m. The room was quiet, fans were humming, and I was staring at a rack filled with spaghetti-like cables—no labels, no logic, just chaos. It took me almost 40 minutes to identify the right connection, and the whole time I was praying I wouldn’t pull the wrong one. That’s when it hit me: proper cable labeling isn’t just a nice-to-have—it’s survival.
In data centers, server rooms, or even small comm closets, cable labels are your safety net. And trust me, there are industry standards and proven cabling logics that can make our lives much easier. Let me walk you through them.
First, What Are the Industry Standards for Labeling Cables in a Rack?
Cable management isn’t about personal habits—it’s about standards that make systems traceable for everyone, no matter who’s on call at 2 a.m.
|
Standard |
Description |
Cable Labeling Requirements |
|
TIA-606-C |
The telecom cabling labeling standard is widely used in the US and globally |
Each cable, rack, and port must have a unique ID, supporting traceability and documentation |
|
ISO/IEC 14763-2 |
International guidelines for cabling installation |
Specifies label material, placement, and update requirements; covers installation and operational practices |
|
BICSI Best Practices |
Global engineering practice guidelines |
Standardizes font, color, readability, and uniformity; emphasizes maintainability and consistency |
TIA-606-C (North America, globally adopted)
This standard requires unique identifiers for every rack, patch panel, port, and cable.
How to apply:
1. Place labels on both ends of every cable, 50–100mm from the connector.
2. Each identifier should include rack ID + U position + port number + function code.
3. Example: R01-U12-P12 → R03-U05-P0
- R01 = Rack number
- U12 = Device position in rack units
- P12 = Port number
- → = Destination side reference
Why it matters: Anyone can grab a cable, read the label, and know exactly where it starts and where it ends.
ISO/IEC 14763-2 (International)
This guideline focuses on installation quality and maintainability.
How to apply:
- Use labels that are moisture-proof, fire-resistant, and UV-stable.
- Keep placement consistent (always at the same distance from connectors).
- Update labels and your documentation after every move, add, or change (MAC).
BICSI Best Practices (Installer playbook)
BICSI is less about rules and more about field-tested consistency.
How to apply:
- Standardize fonts and sizes (typically 6–10pt).
- Always face labels outward—no bending or guessing.
- Use color coding by function: blue (data), yellow (voice), red (power), green (management).
Following these isn’t about red tape—it’s about universal readability. Any engineer, from any team, should be able to walk into your rack and understand it instantly.
Next, Cabling Logic: The“Total–Branch–Terminal” Approach
Think of your cabling like a tree. A good labeling system doesn’t just mark cables—it reflects the entire hierarchy.
Backbone Cabling (Trunk)
The high-capacity links between core switches or patch panels.
- Labeling strategy: Assign a unique trunk ID, such as BB01, BB02.
- For fiber or thick copper, use heat-shrink tube labels for durability.
- Example: BB01-CoreSW1-PortA → BB01-DC1-Patch01
Horizontal Cabling (Branches)
The distribution runs that connect trunks to racks.
Labeling strategy: Include the parent trunk ID + branch number + rack and unit.
Example: BB01-H01-R03-U10-P2
- H01 = Branch group
- R03-U10 = Rack 3, Unit 10
- P24 = Port 24
Work Area Cabling (Terminals)
The final hop to servers, storage, or appliances.
- Labeling strategy: Add device name and port.
- Example: BB01-H01-R03-U10-SRV12-Eth1
Meaning: from trunk 01, branch 01, into Rack 3/U10, Server 12, Ethernet port 1.
With this kind of structure, your labels don’t just say “Cable 1”—they tell the story of the cable’s journey, from backbone to endpoint.
After That, What Makes a Good Cable Label? The 8 Key Dimensions
Now, let’s break down what really matters when labeling cables in a rack:
1. Traceability – Labels Should Tell a Story
A label isn’t just text; it’s a breadcrumb trail. Use consistent codes and, if possible, add QR codes linked to your CMDB or Excel sheet.

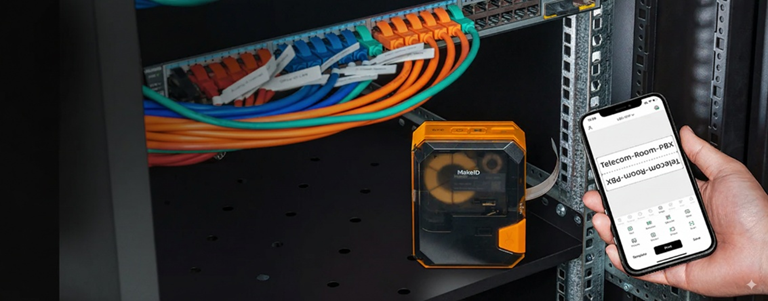

Tool tip: The MakeID P31 prints multi-line text and QR codes, so you can combine quick reference with full traceability.
2. Durability – Labels Must Outlive the Cables
Heat, airflow, dust, and humidity destroy cheap stickers fast. Go industrial-grade: waterproof, oil-resistant, scratch-proof.
- Use heat-shrink tubing for power cables and wrap-around labels for data cables.
- MakeID’s industrial tube markers are designed for harsh data center conditions.
3. Standardization – Everyone Speaks the Same Language
If every engineer invents their own system, your rack will look like a crime board. Stick to TIA-606 or BICSI formats, and document them in a team handbook.
The MakeID P31 can store templates so all labels look uniform—same font, same size, every time.
4. Safety – Labels Are Your Insurance Policy
Pulling the wrong cable during an incident is the nightmare scenario. Differentiate power vs. data with color-coded labels.
MakeID tapes come in multiple colors to make critical separation obvious.
5. Cost-Effectiveness – Think Lifecycle, Not Sticker Price
Cheap labels fade or fall off within a year, costing more in downtime and rework. Consider the total cost of ownership (TCO).
Investing in a printer like the P31 pays off because labels stay readable for years, not months.
6. Manageability – Labels Should Talk to Your Database
Every code should map to your documentation: rack diagrams, Excel sheets, or a CMDB. For next-level ops, use barcodes/QR codes.
The P31 supports barcode/QR printing, making cables scannable assets.
7. Aesthetics & Professionalism – Neat Labels, Neat Racks
Looks matter. A rack full of crooked, mismatched labels screams “messy ops.” Consistency = professionalism.
Align labels at the same height, use uniform fonts, and avoid handwriting unless it’s an emergency.
8. Efficiency – Labels Should Save Time, Not Waste It
The best time to label is during installation, not after. In emergencies, a portable printer like the P31 lets you relabel on the spot—even at 3 a.m.
Important Notes
- Pick the right label type for the job: heat-shrink tubes, wrap-around labels, or industrial tags.
- Always reflect the total–branch–terminal logic in your codes.
- Document your system: labels are useless without matching records.
- Train your team—consistency is everything.
（read more）：
- How to Choose a Wire Label Maker
- How to Choose a Label Printer for Your Warehouse
- How to Label Ethernet Cables？
Final
At the end of the day, cable labels are not decoration—they’re the backbone of efficient, safe, and professional rack management.
For me, investing in a solid labeling tool like the MakeID P31 was a game-changer. It made standardization easier, labels more durable, and my racks finally looked like they belonged in a data center, not a garage.
Remember this:
A good label = faster management, fewer outages, and a stronger professional image.
So next time you’re staring at a rack full of mystery cables, ask yourself—do you want to spend 5 minutes or 50 minutes finding the right one?
